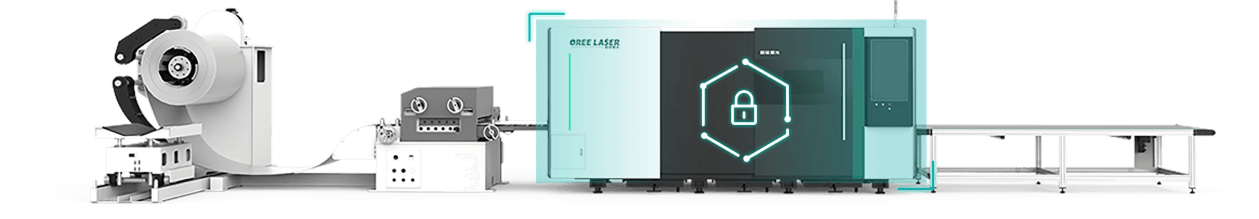

Large enclosure design

Isolating the work area and keeping the cutting area closed can ensure the safety of the operator while preventing the leakage of dust generated by the cutting and ensure the cleanliness of the work area.

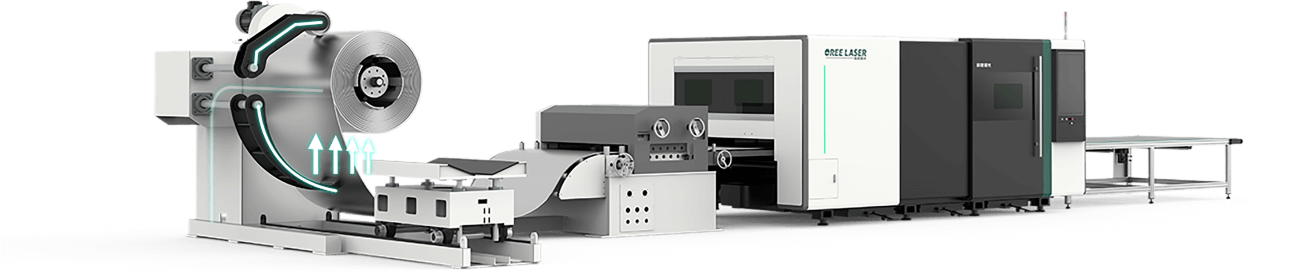

Stress annealed heavy material rack

Cantilever structure, stress annealing, high load-bearing frame, stable operation. Frequency conversion control, stable feeding material, hydraulic expansion, flexible operation. The material rack adopts hydraulic expansion and comes with a feeding trolley for flexible operation.

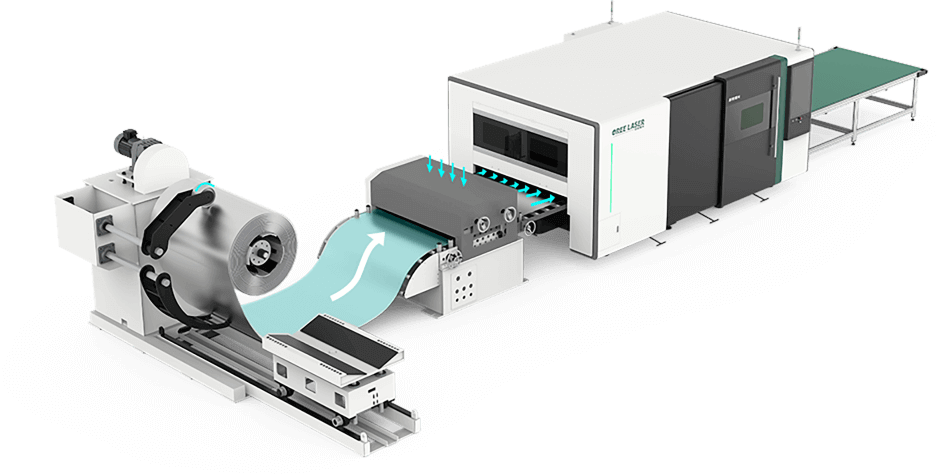

“Double”mode high efficiency leveling machine

Thickened electroplated bearing steel, durable and wear-resistant; turbine synchronization, worm adjustment; manual and electric dual mode, gear transmission; self-equipped pressure roller, high-quality and powerful leveling.

Servo precision feeding device

Servo motor drive, follow-up roller support, reduce metal sheet slip and curling.

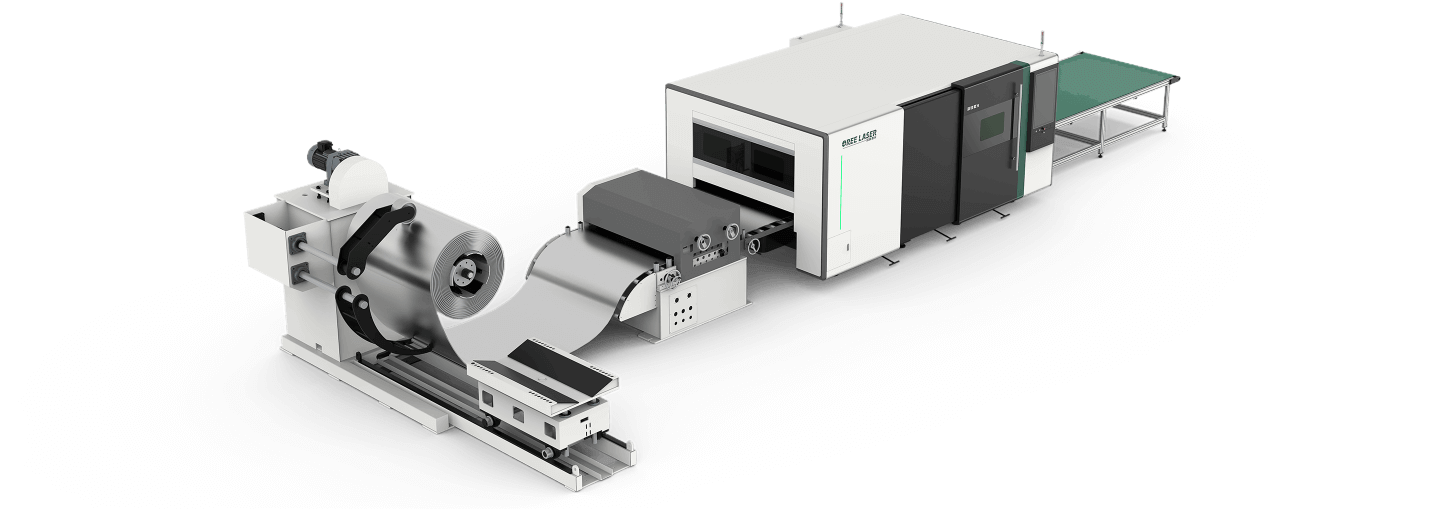

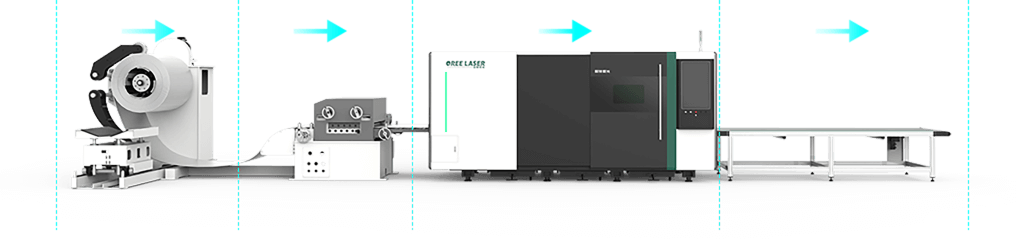

Automatic assembly line

It can realize the uncoiling, leveling and cutting of bare roll materials in one go, saving labor and efficient production.
Product Video
Technical Parameter
mm
inch
Model
 R3015 R4015 R6015
Laser Output Power
1000w-3000w 1000w-3000w 1000w-3000w
Max Processing Range
3050mm*1530mm 4050mm*1530mm 6050mm*1530mm
Positioning Accuracy
±0.03mm ±0.03mm ±0.03mm
Repeat Positioning
±0.02mm ±0.02mm ±0.02mm
Max Movement Speed
80m/min 80m/min 80m/min
Max Acceleration
1G 1G 1G
Model
 R3015 R4015 R6015
Laser Output Power
1000w-3000w 1000w-3000w 1000w-3000w
Max Processing Range
120*60inch 159*60inch 238*60inch
Positioning Accuracy
±0.001181inch ±0.001181inch ±0.001181inch
Repeat Positioning
±0.000787inch ±0.000787inch ±0.000787inch
Max Movement Speed
80m/min 80m/min 80m/min
Max Acceleration
1G 1G 1G
Cutting Sample
