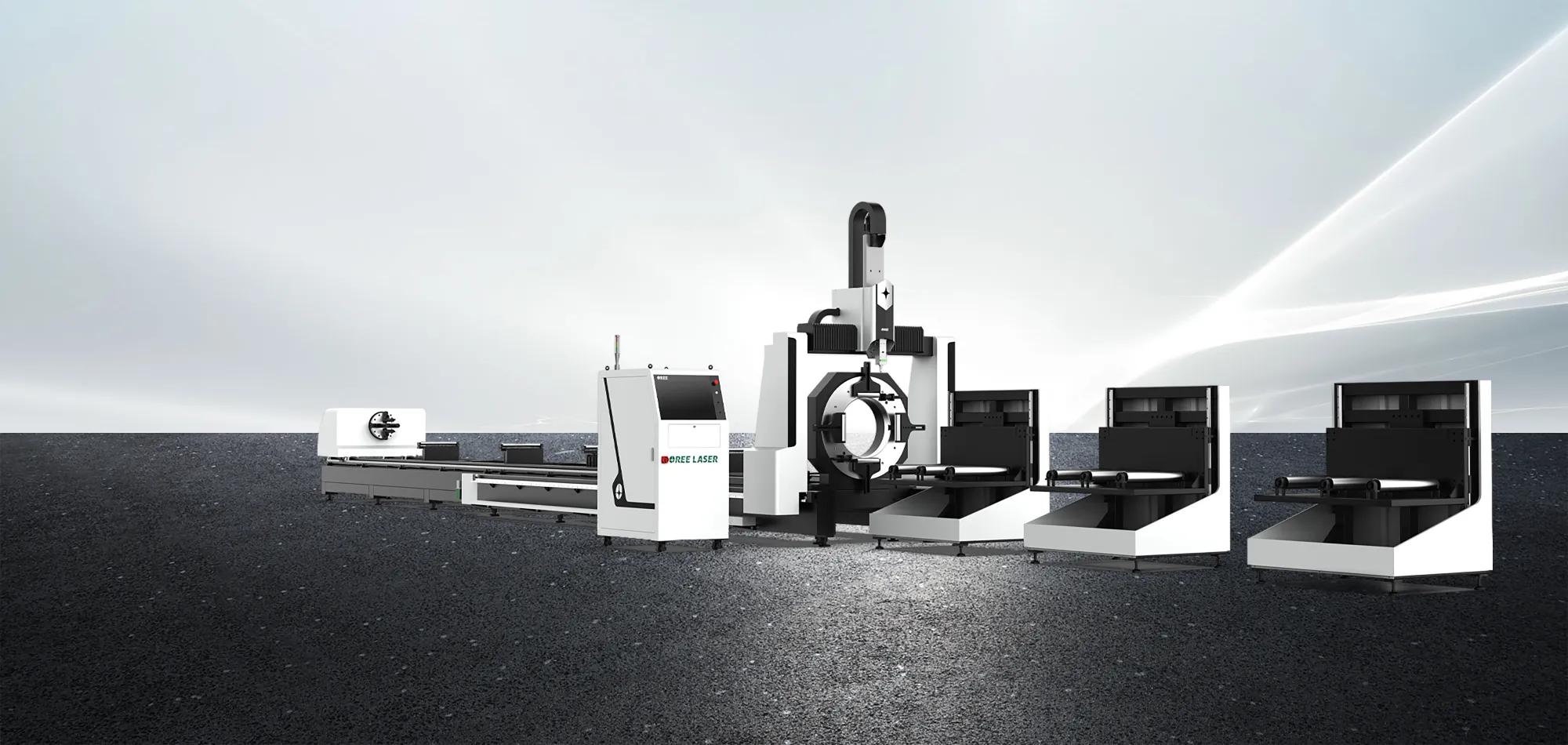

Brand New Double-beam Bed Structure
Adopting a horizontal bed structure
Self-developed Stopper Plug-in Double-beam Design
With a low center of gravity and high load-bearing capacity, ensuring stable cutting of heavy pipes
Mastering all Types of Pipes
Wide cutting application range, adaptable to various cutting conditions
Can be used for cutting or cutting complex shapes for various types of pipes
Moveable Gantry Structure
Designed with an ultra-long mobile gantry structure
Can meet the cutting needs of long workpieces
Maximum processing pipe length can reach 12m
Equipped with Follow-up Support Device
Equipped with a follow-up material support
Real-time adjustment of lifting height
Prevents the pipe from swinging and sagging
Ensuring cutting accuracy
Follow-up Unloading, Safe and Convenient
Equipped with a follow-up unloading device
Safer and more convenient unloading
Greatly improves production efficiency
Product Video
Technical Parameter
mm
inch
Model
 OR-TR6060 OR-TR12060
Power
3000w-12000w 3000w-12000w
Effective cutting diameter of round tube
φ20-590mm φ20-590mm
Effective cutting diameter of square tube
□20-400mm □20-400mm
Y-axis maximum acceleration
0.5G 0.5G
Maximum cutting length
6300mm 12300mm
Maximum chuck speed
30r/min 30r/min
Model
 OR-TR6060 OR-TR12060
Power
3000w-12000w 3000w-12000w
Effective cutting diameter of round tube
φ0.787-23.22inch φ0.787-23.22inch
Effective cutting diameter of square tube
□0.787-15.74inch □0.787-15.74inch
Y-axis maximum acceleration
0.5G 0.5G
Maximum cutting length
248.03inch 484.25inch
Maximum chuck speed
30r/min 30r/min
Cutting Sample
