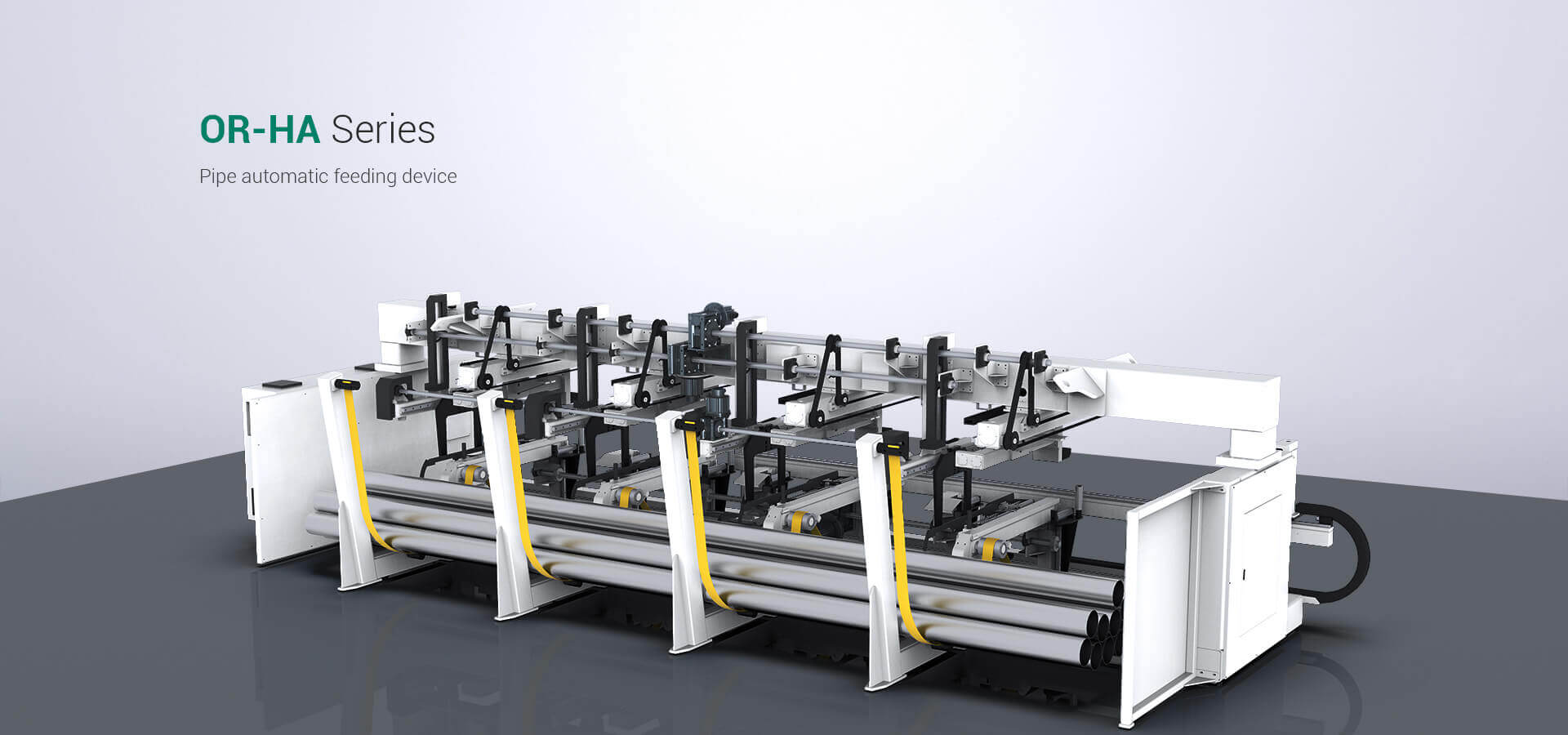

Intelligent automated production
Unattended working cycle, 24-hour continuous production; intelligent feeding, sorting, and deviation correction, improving intelligence.
Loading and preparation, synchronized
Synchronous and automatic material preparation during processing, shortening the refueling time and improving production efficiency.
intelligent operating system
Flexible interface operation, seamless connection with laser cutting system, efficient and convenient operation.
Technical Parameter
mm
inch
Model
 HA6230
Optional models
TL/TG/TA/TS
Feeding method
Fully automatic feeding
Pipe length
6000-6200mm
Tube type
Square tube, round tube, rectangular tube, etc.
Pipe size range
Round tube Φ 20 - Φ 220mm, square tube □ 20 - □ 150mm, circumscribed circle diameter ≤ 220mm
Model
 HA6230
Optional models
TL/TG/TA/TS
Feeding method
Fully automatic feeding
Pipe length
236.22-244.09inch
Tube type
Square tube, round tube, rectangular tube, etc.
Pipe size range
Round tube Φ0.78 - Φ8.66inch, square tube □0.78 - □5.90inch, circumscribed circle diameter ≤8.66inch
Cutting Sample
