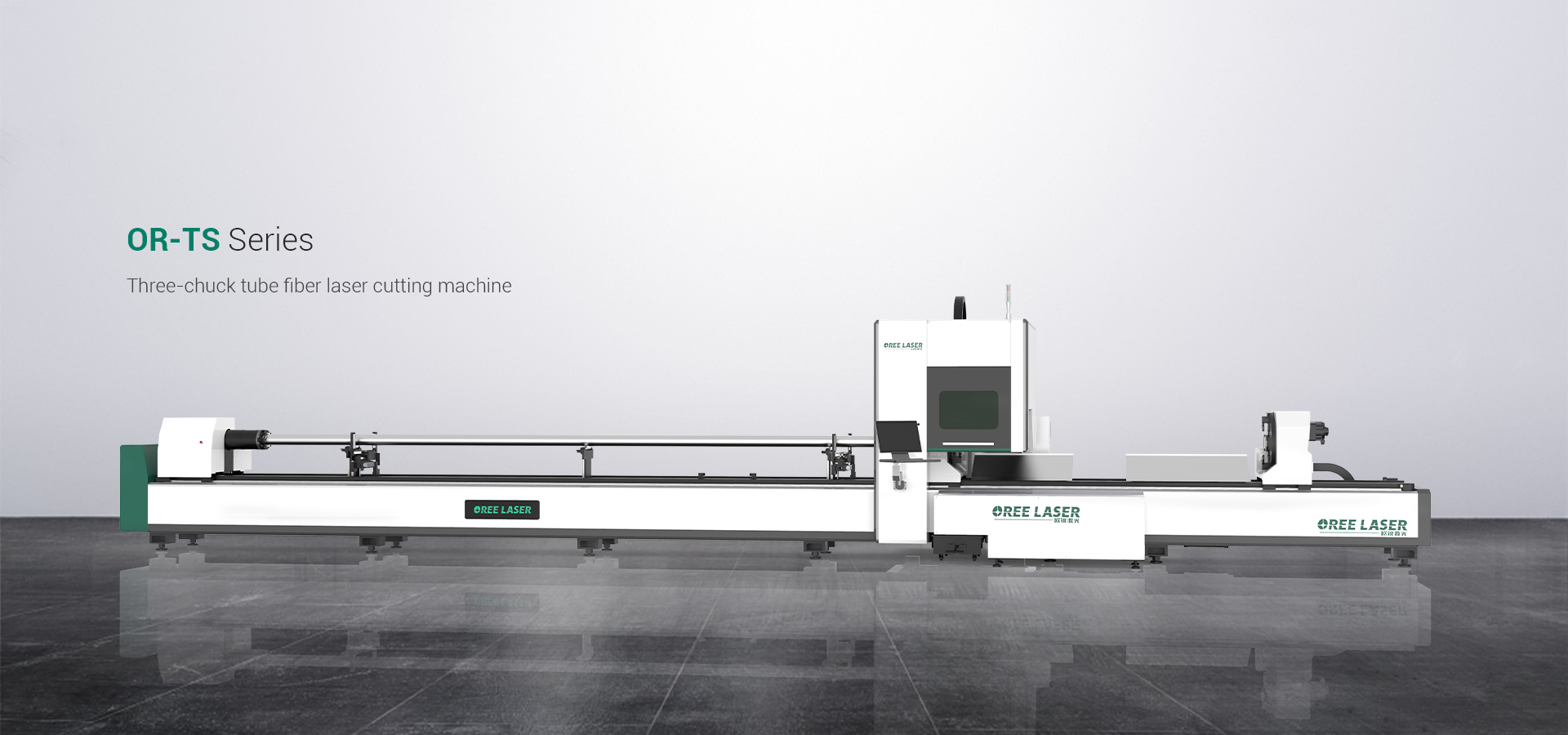

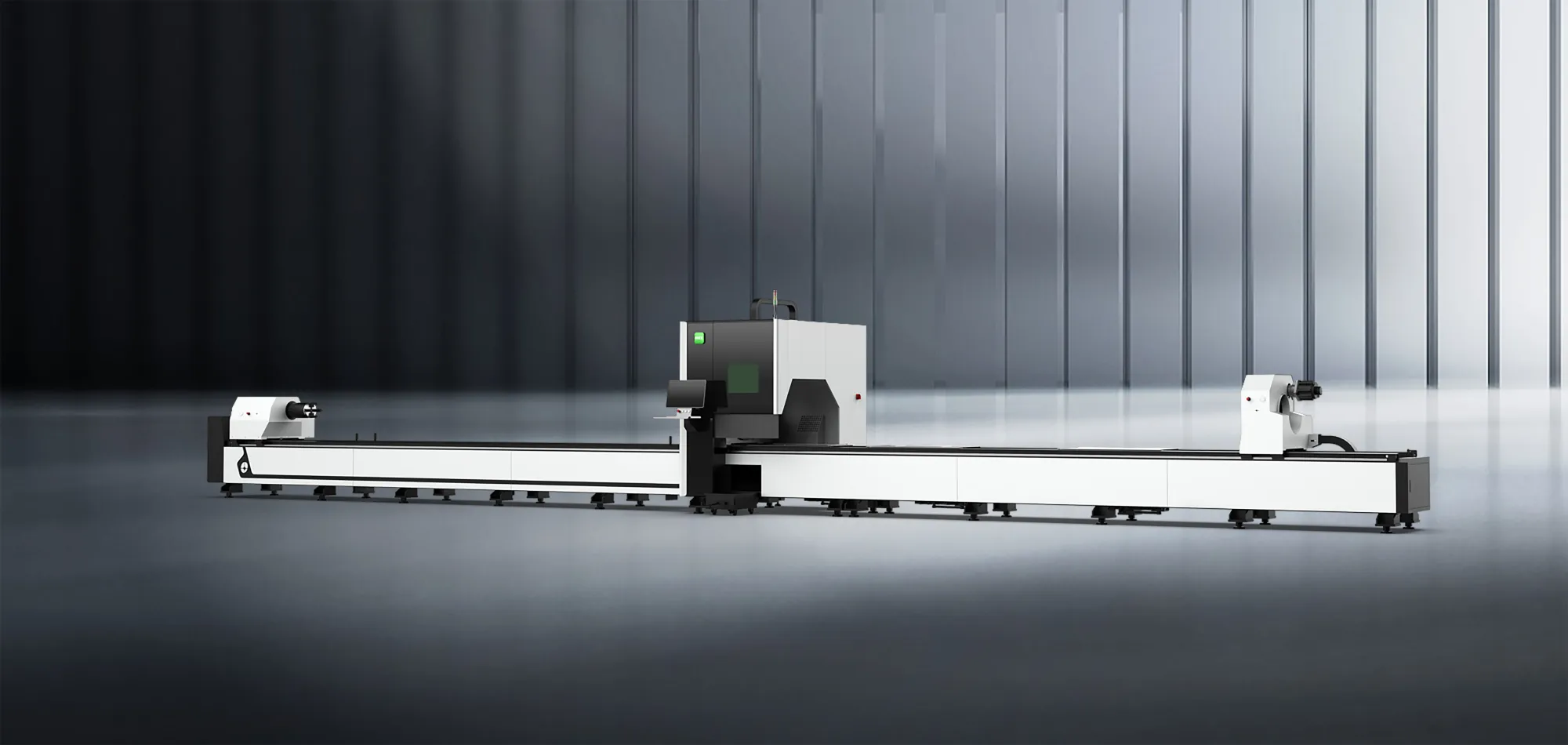

Three chucks clamping & zero tail materials

Three chucks clamping & zero tail materials Innovative three-chuck clamping technology, the chuck clamping force is adaptive to the pipe, realize accurately clamped; The casting integrated chuck base improves the overall stability of the chuck and achieves high-precision positioning cutting;Following the chuck via the middle chuck's internal cutting operation, the three chucks work together.

Wide range of pipe cutting

It supports the processing of 12000mm ultra-long whole workpiece, channel steel, angle steel, I-beam and other profiles, and the maximum load-bearing capacity of a single pipe is 900KG.

Double-sided follow-up support device

It can reduce processing errors, ensure uniform force on the entire metal pipe, and improve cutting accuracy. Real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.

Integrated frame bed design

The integrated processing technology of high-precision gantry machine tool, through furnace annealing and aging treatment, the stability and cutting precision of the bed are greatly improved and the service life of the bed is prolonged.

3D tube nesting software TubesT, meet your production needs

TubesT is a 3D tube nesting software for the TS series. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs.
Product Video
Technical Parameter
mm
inch
Model
 TS12035 TS12020 TS6020
Laser Output Power
1000W~6000W 1000W~6000W 1000W~6000W
Diameter Of Round Tube
φ15-350mm φ15-230mm φ15-230mm
Side length Of Square Tube
□15-350mm □15-230mm □15-230mm
Positioning Accuracy
±0.05mm ±0.05mm ±0.05mm
Repeat Positioning Accuracy
±0.05mm ±0.05mm ±0.05mm
Maximum Speed Of Movement
80m/min 110m/min 110m/min
Maximum Acceleration
0.8G 1.5G 1.5G
Model
 TS12035 TS12020 TS6020
Laser Output Power
1000W~6000W 1000W~6000W 1000W~6000W
Diameter Of Round Tube
φ0.59inch-0.866inch φ13.77-9.05inch φ13.77-9.05inch
Side length Of Square Tube
□0.59-0.866inch □13.77-9.05inch □13.77-9.05inch
Positioning Accuracy
±0.00197inch ±0.00197inch ±0.00197inch
Repeat Positioning Accuracy
±0.00197inch ±0.00197inch ±0.00197inch
Maximum Speed Of Movement
80m/min 110m/min 110m/min
Maximum Acceleration
0.8G 1.5G 1.5G
Cutting Sample
