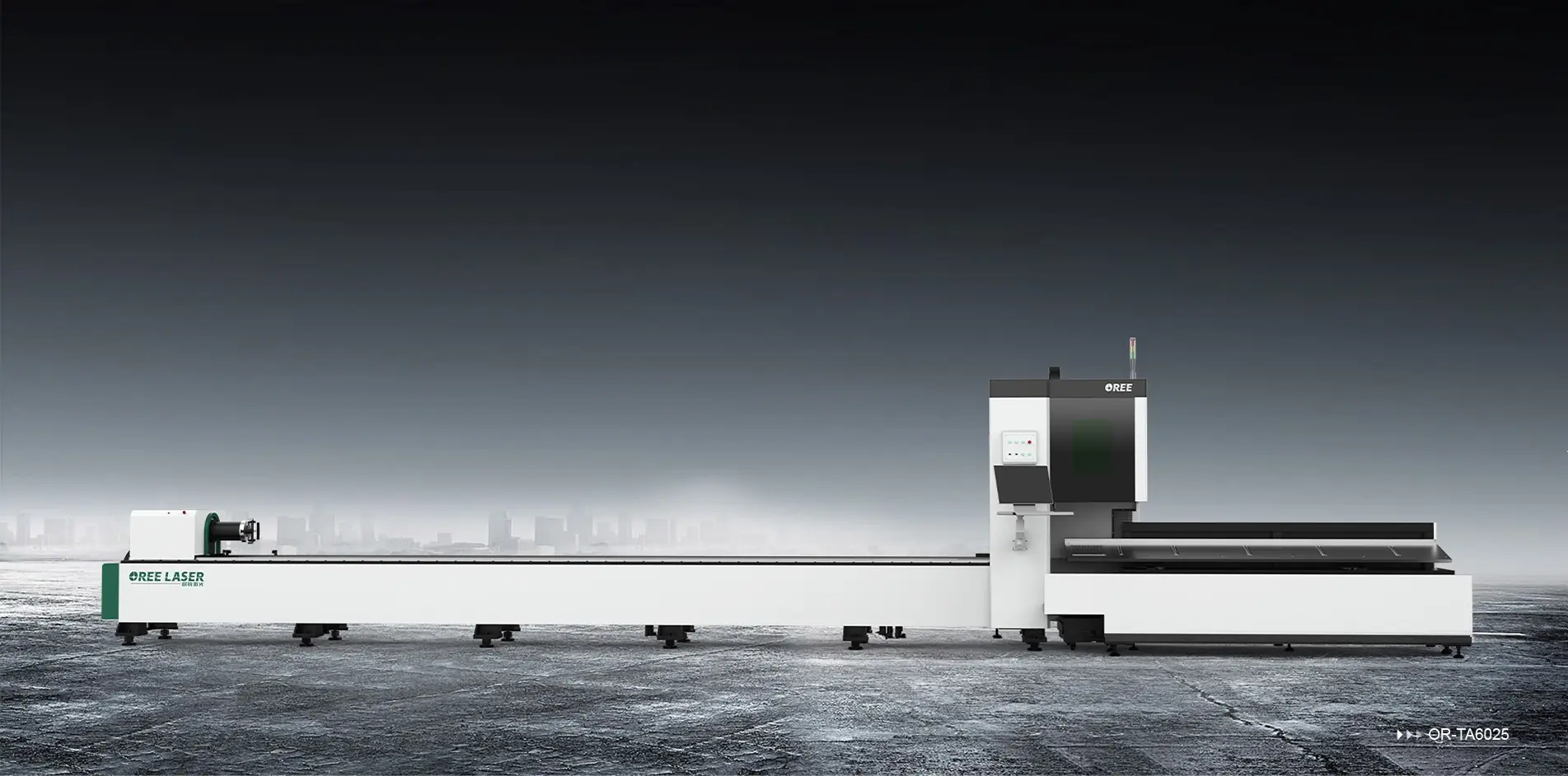

Place the pipe on the supporting roller
The pipe clamping range is wide,Round tube φ10-φ10, and Square tube side length is 10 * 10mm-350mm * 350mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waist pipe, multi-deformed pipe, etc.
Pneumatic correction and centering device
Place the pipe on the supporting roller, the correction component works, and the correction device clamps the pipe to automatically align the center of the chuck, and the chuck precisely clamps and feeds the material.
Integrated Machine Bed
Adopt overall heavy-duty high-strength cold-rolled tube sheet tailor-welded bed, plug-in structure, and equal-strength welding
Upgrade the Tube Cutting Bus Control System
Cypcut FSCUT5000 pipe cutting bus control system supports high-precision and high-efficiency cutting of square pipes, round pipes, racetrack-shaped, elliptical and other stretched pipes, as well as angle steel and channel steel.
Efficient Auto-lubrication system
Manually set the number and time interval of automatic lubrication according to the length of equipment use;Automatic lubrication of guide rails, sliders, gears, racks, and other components, recycling, and centralized processing of lubricating waste oil.
Product Video
Technical Parameter
mm
inch
Model
 TA6035 TA9035 TA12035 TA6020 TA12020 TA12025
Laser Output Power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Effective Cutting Diameter Of Round Tube
φ15mm-φ350mm φ15mm-φ350mm φ15mm-φ350mm φ15mm-φ230mm φ15mm-φ230mm φ15mm-φ230mm
Effective Cutting Diameter Of Square Tube
□15mm-□350mm □15mm-□350mm □15mm-□350mm □15mm-□230mm □15mm-□230mm □15mm-□250mm
Accuracy Of Positioning
±0.05mm ±0.05mm ±0.05mm ±0.05mm ±0.05mm ±0.05mm
Repeat Repositioning Accuracy
±0.05mm ±0.05mm ±0.05mm ±0.05mm ±0.05mm ±0.05mm
Max Movement Speed
80m/min 80m/min 80m/min 110m/min 110m/min 120m/min
Maximum Acceleration
0.8G 0.8G 0.8G 1.5G 0.8G 0.8G
Model
 TA6035 TA6020 TA12035 TA6020 TA12020 TA12025
Laser Output Power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Effective Cutting Diameter Of Round Tube
φ0.5906inch-13.779inch φ0.5906inch-13.779inch φ0.5906inch-13.779inch φ0.5906inch-9.05512inch φ0.5906inch-9.05512inch φ0.5906inch-9.05512inch
Effective Cutting Diameter Of Square Tube
□0.5906inch-13.779inch □0.5906inch-13.779inch □0.5906inch-13.779inch □0.5906inch-9.05512inch □0.5906inch-9.05512inch □0.5906inch-9.05512inch
Accuracy Of Positioning
±0.00197 inch ±0.00197 inch ±0.00197 inch ±0.00197 inch ±0.00197 inch ±0.00197 inch
Repeat Repositioning Accuracy
±0.00197 inch ±0.00197 inch ±0.00197 inch ±0.00197 inch ±0.00197 inch ±0.00197 inch
Max Movement Speed
80m/min 80m/min 80m/min 110m/min 110m/min 120m/min
Maximum Acceleration
0.8G 0.8G 0.8G 1.5G 0.8G 0.8G
Cutting Sample
Contact Us
If you want a price, fully catalogue or other informations, pls contact us
