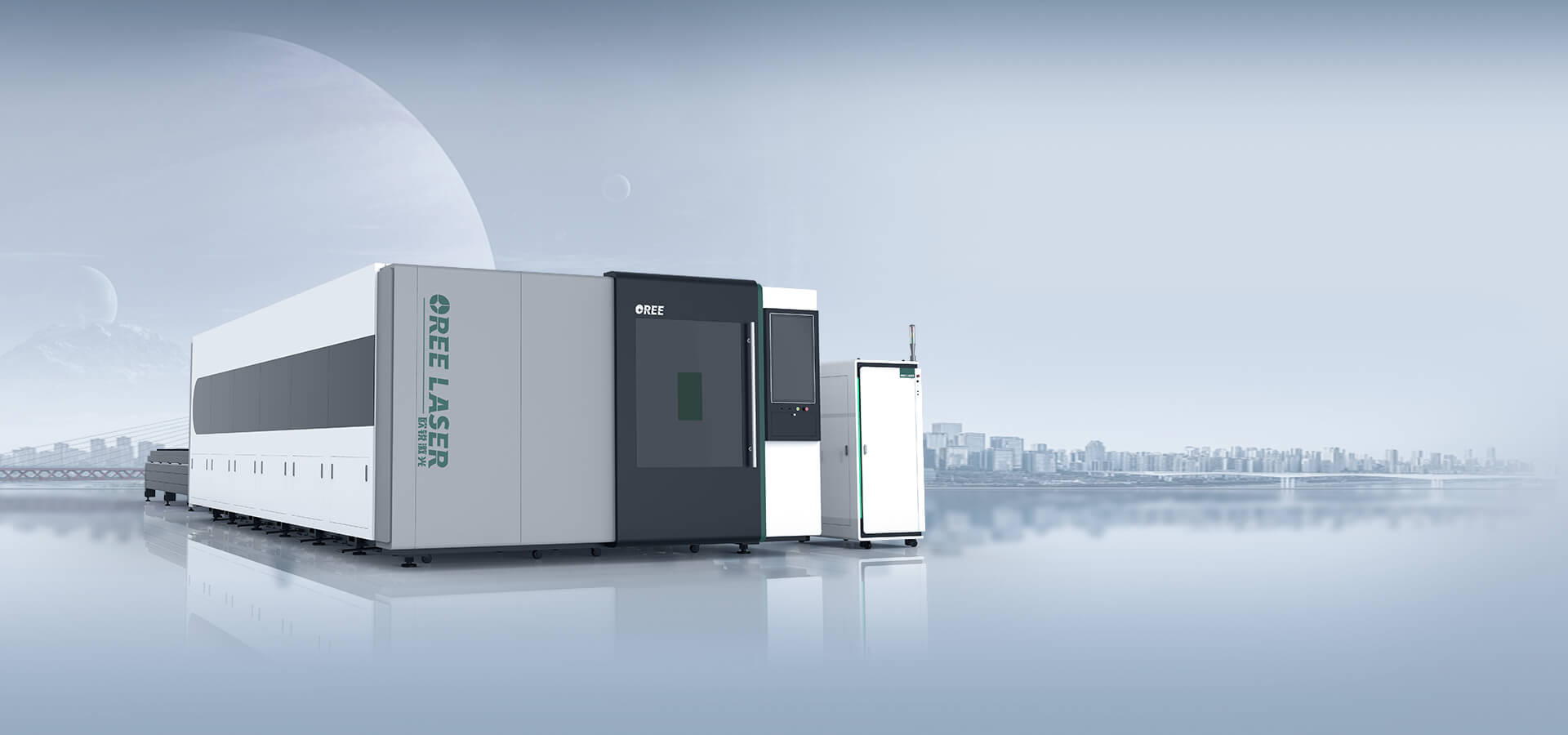

Superheavy Steel Welding Machine Bed

The bed adopts 12mm super-thick monolithic steel plate laser blanking.The groove welding method is used to make the plates reach equal strength butt Then it undergoes stress annealing and natural aging treatment to eliminate internal stress and maintain the extremely high stability and cutting accuracy of the bed.

The Fifth-generation Aviation Aluminum Alloy Beam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
Auto Focus Laser Head
Suitable for a variety of focal lengths, the focus position can be adjusted according to different thicknesses. Flexible and fast, no collision, automatic edge finding, reducing sheet waste.

Full Protection Cover

The front and back of the protective cover are equipped with built-in cameras and use the intelligent central control system to monitor the operation. The European CE standard OD4+ level protective glass observation window, thickened sheet metal protective cover, safe production.

Faster Exchange Speed

Equipped with a six-sided steel track, the pulley and the track are inlaid closely, and the built-in pulley runs smoothly. The fastest can achieve a complete exchange of 10S.
Product Video
Technical Parameter
mm
inch
Model
 OR-PG 3015 OR-PG 6015 OR-PG 4020 OR-PG 6020 OR-PG 6025 OR-PG 8025 OR-PG 12025
Laser Power
6000w-60000w 6000w-60000w 6000w-60000w 6000w-60000w 6000w-60000w 6000w-60000w 6000w-60000w
Working Area
3050*1530mm 6050*1530mm 4050*2030mm 6050*2030mm 6050*2530mm 8050*2530mm 12100*2530mm
Accuracy Of Positioning
±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Repeat Repositioning Accuracy
±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max Movement Speed
120m/min 120m/min 120m/min 120m/min 120m/min 120m/min 120m/min
Maximum Acceleration
1.5G 1.5G 1.5G 1.5G 1.5G 1.5G 1.5G
Model
 OR-PG 3015 OR-PG 6015 OR-PG 4020 OR-PG 6020 OR-PG 6025 OR-PG 8025 OR-PG 12025
Laser Power
6000w-60000w 6000w-60000w 6000w-60000w 6000w-60000w 6000w-60000w 6000w-60000w 6000w-60000w
Working Area
120*60inch 238*60inch 159*79inch 238*79inch 238*99inch 316*99inch 476*99inch
Accuracy Of Positioning
±0.0011811 inch ±0.0011811 inch ±0.0011811 inch ±0.0011811 inch ±0.0011811 inch ±0.0011811 inch ±0.0011811 inch
Repeat Repositioning Accuracy
±0.0007874 inch ±0.0007874 inch ±0.0007874 inch ±0.0007874 inch ±0.0007874 inch ±0.0007874 inch ±0.0007874 inch
Max Movement Speed
120m/min 120m/min 120m/min 120m/min 120m/min 120m/min 120m/min
Maximum Acceleration
1.5G 1.5G 1.5G 1.5G 1.5G 1.5G 1.5G

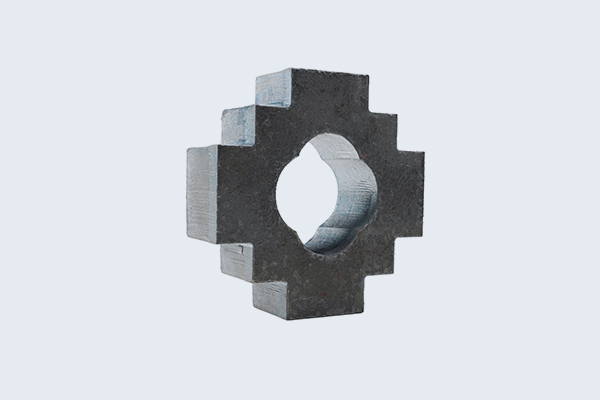

Cutting Sample
