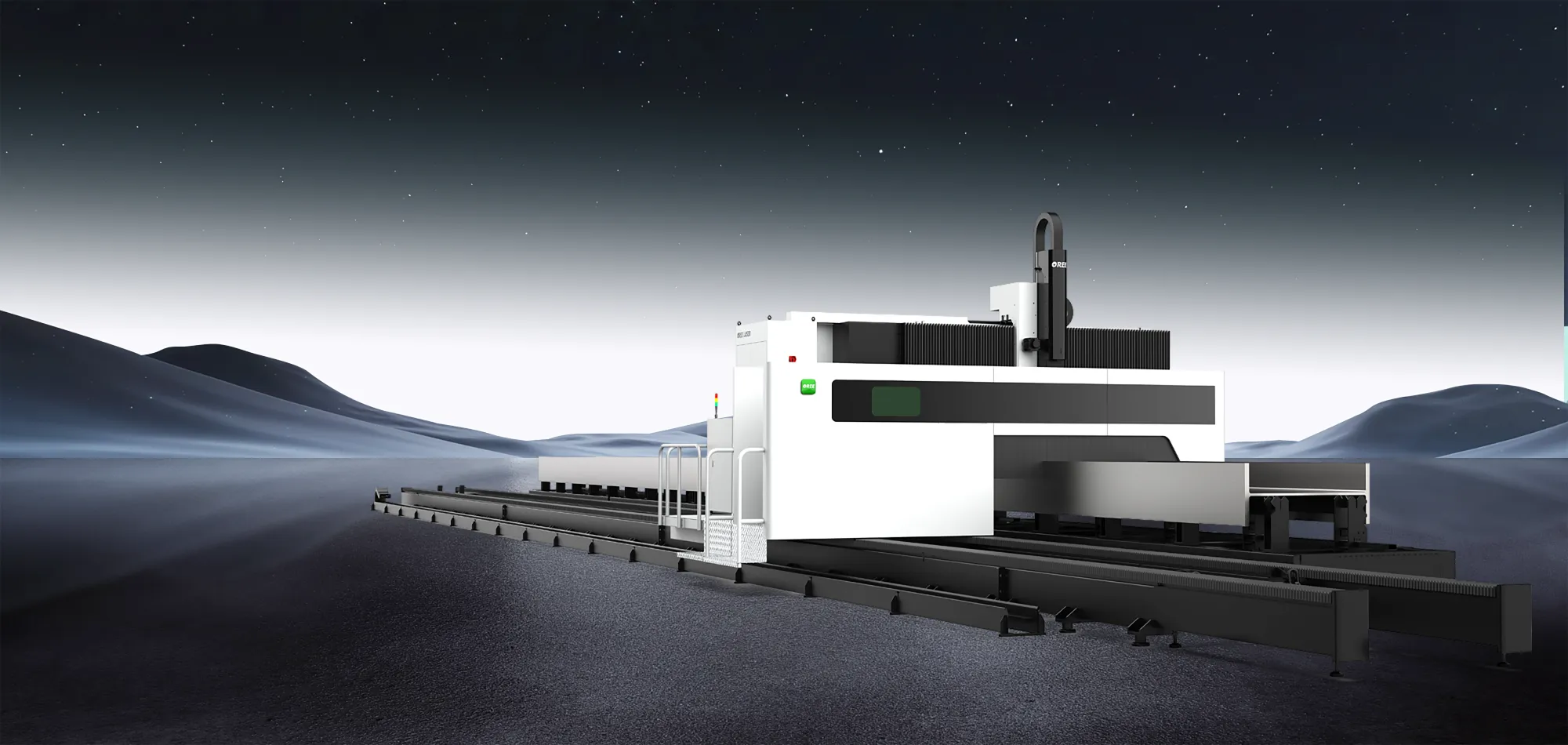

One-stop Solution for the Steel Structure Industry
Customized research and development for the steel structure industry, specializing in I-beams, HW, HM, HN-type steel, one-stop assistance to reduce costs and increase efficiency in the steel structure industry.
Dual-workstation Table Design, Cost-Saving
Using heavy-duty machine tool on rails for stable cutting; dual-workstation table design with high one-time piercing rate, enabling simultaneous cutting and loading/unloading, saving time and labor costs.
Professional Profile Cutting System, Intelligent Nesting Assistance
Seamless connection of Tekla with equipment's intelligent nesting feature, providing efficient material saving, automatic sorting, precise cutting, and other functions, effectively boosting the drive for secondary processing of steel.
One-stop Processing Workflow, Saving Labor Costs
Intelligent operation, one-stop processing, high cutting accuracy, one-person operation, saving the work of 3-4 workers, improving processing efficiency.
Technical Parameter
mm
inch
Model
 OR-TP
Configured Power
12000W-20000W
X/Y Axis Positioning Accuracy
±0.25mm
X/Y Axis Repeat Positioning Accuracy
±0.05mm
Mainframe Size
31000*5000*3700
Cutting Scenarios
Web/flange cutting, beveling, welding through-holes, bolt holes, marking, etc.
Cutting Range
Flange 200mm≤h≤500mm;Web 200mm≤b≤1250mm
Model
 OR-TP
Configured Power
12000W-20000W
X/Y Axis Positioning Accuracy
±0.0098425 inch
X/Y Axis Repeat Positioning Accuracy
±0.0019685 inch
Mainframe Size
31000*5000*3700
Cutting Scenarios
Web/flange cutting, beveling, welding through-holes, bolt holes, marking, etc.
Cutting Range
Flange 7.8740157inch≤h≤19.6850394inch;Web 7.8740157inch≤b≤49.2125984 inch
Cutting Sample
