Fast Speed Cutting, Improve Efficiency
Max acceleration 1.5G
Maximum Linkage Speed 120m/min
Efficient batch cutting of medium-thin plates
Improving production efficiency
Brand New Double-beam Bed Structure
Designed for high-efficiency processing needs
Self-developed stopper plug-in double-beam design
No deformation in long-term cutting
Ensuring stable equipment operation

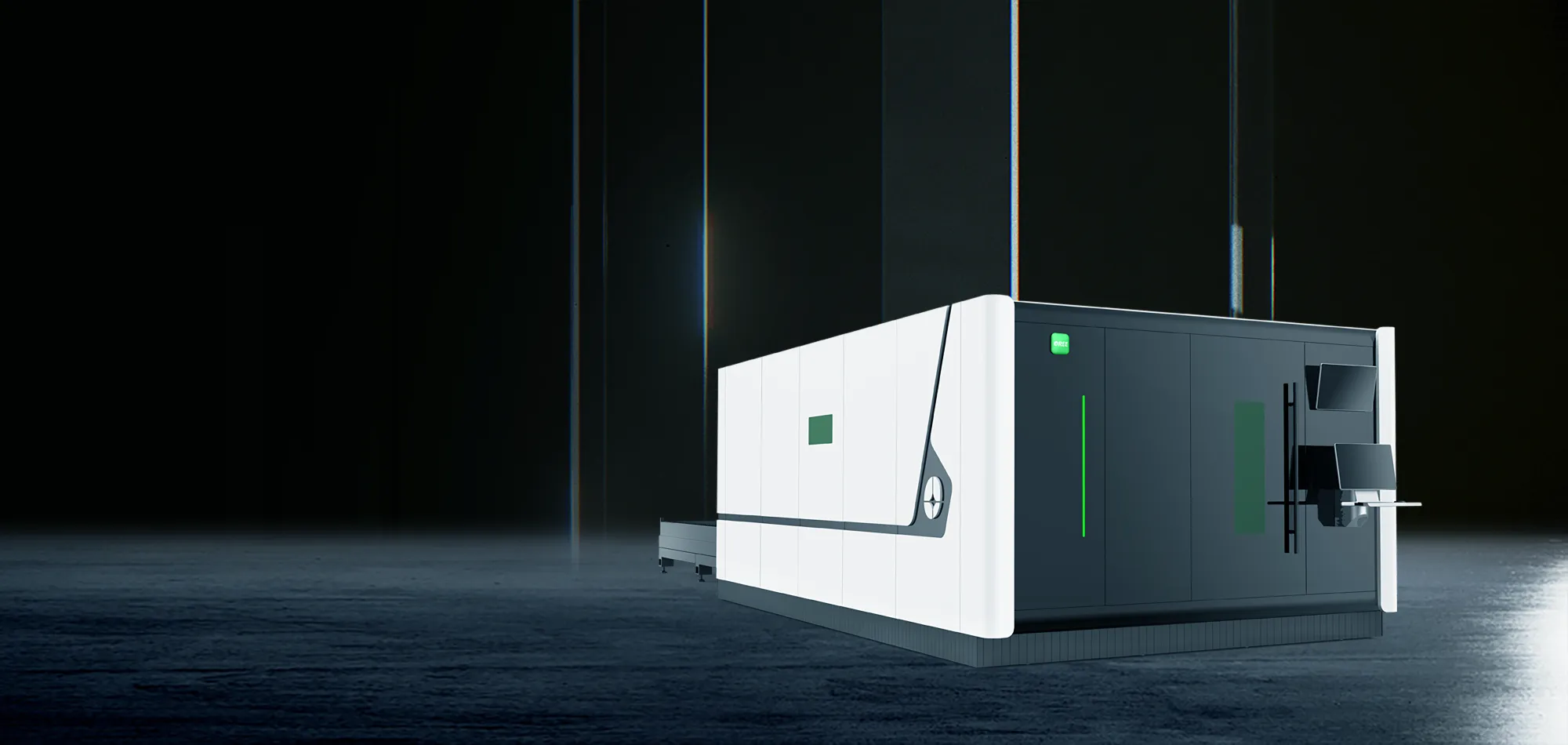

Full Enclosure Design, Safety and Environmental Protection
Fully enclosed cover design
European protection standards
Safety and environmental protection
Clean cutting smoke and dust internally
Effectively prevent safety risks caused by splashing sparks
New Heat Insulation Technology
Adopting new fire-resistant and heat-insulating technology
Improving equipment lifespan, ensuring cutting precision
Product Video
Technical Parameter
mm
inch
Model
 OR-PH3015 OR-PH6015 OR-PH4020 OR-PH6020 OR-PH6025
Processing area
3050*1510mm 6050*1530mm 4050*2030mm 6050*2030mm 6050*2530mm
Laser power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Positioning accuracy
±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Repeated positioning accuracy
±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Maximum cutting speed
100m/min 100m/min 120m/min 120m/min 120m/min
Maximum acceleration
1.5G 1.5G 1.5G 1.5G 1.5G
Model
 OR-PH3015 OR-PH6015 OR-PH4020 OR-PH6020 OR-PH6025
Processing area
120*60inch 238*60inch 159*79inch 238*79inch 238*99inch
Laser power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Positioning accuracy
±0.001181inch ±0.001181inch ±0.001181inch ±0.001181inch ±0.001181inch
Repeated positioning accuracy
±0.0007874inch ±0.0007874inch ±0.0007874inch ±0.0007874inch ±0.0007874inch
Maximum cutting speed
100m/min 100m/min 120m/min 120m/min 120m/min
Maximum acceleration
1.5G 1.5G 1.5G 1.5G 1.5G
Cutting Sample
Contact Us
If you want a price, fully catalogue or other informations, pls contact us
