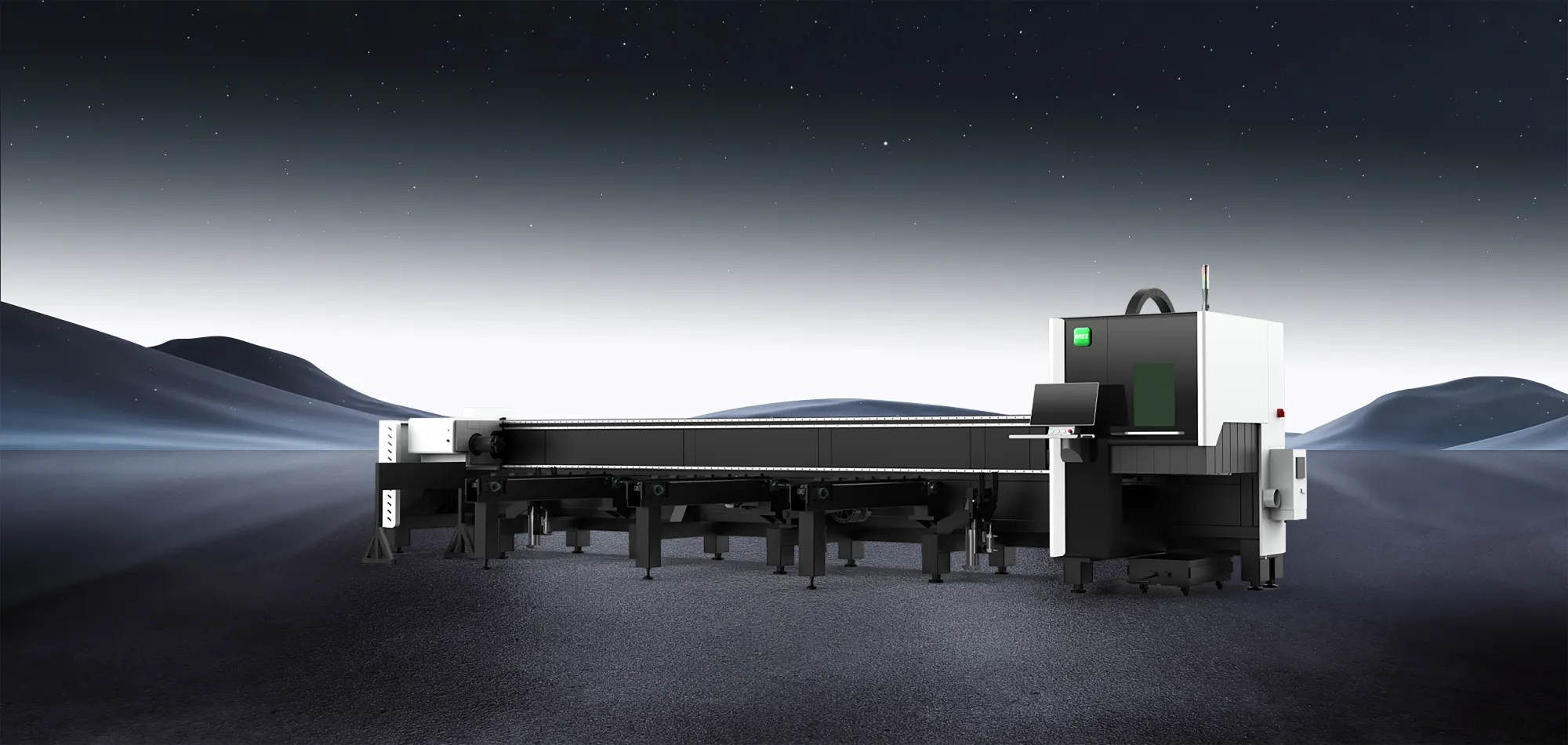

High-speed Cutting, Ultimate Processing
The chuck adopts a pneumatic direct push structure
Automatic centering, stable clamping, high transmission efficiency
Easy to disassemble and maintain, greatly improving processing efficiency
All kinds of Pipes are Within Reach
Wide cutting application range, suitable for various cutting conditions
Can be used to cut or cut complex shapes for various types of pipes
Front-moving chuck design, Industry Pioneer
Movable front chuck design
Allows the cutting head to stay between the two chucks
Effectively cutting longer pipes
Cutting accuracy and stability are guaranteed
Intelligent Feeding
Equipped with automatic feeding
High processing efficiency and high intelligence
Greatly improve production efficiency and save labor costs
Short Tailing
While improving cutting efficiency
Make the most of the raw materials and reduce production costs
Product Video
Technical Parameter
mm
inch
Model
 OR-TH6020 OR-TH6016
Laser power
1000w~3000w 1000w~3000w
Effective cutting diameter of round tube
Φ10-Φ225mm Φ10-Φ160mm
Effective cutting diameter of square tube
□10-□225mm □10-□160mm
Positioning accuracy
±0.01mm ±0.01mm
Chuck maximum speed
120r/min 140r/min
Maximum acceleration
1.5G 1.5G
Model
 OR-TH6020 OR-TH6016
Laser power
1000w~3000w 1000w~3000w
Effective cutting diameter of round tube
Φ0.3937-Φ8.858inch Φ0.3937-Φ6.29inch
Effective cutting diameter of square tube
□0.3937-□8.858inch Φ0.3937-□6.29nch
Positioning accuracy
±0.00039inch ±0.00039inch
Chuck maximum speed
120r/min 120r/min
Maximum acceleration
1.5G 1.5G
Cutting Sample
Contact Us
If you want a price, fully catalogue or other informations, pls contact us
