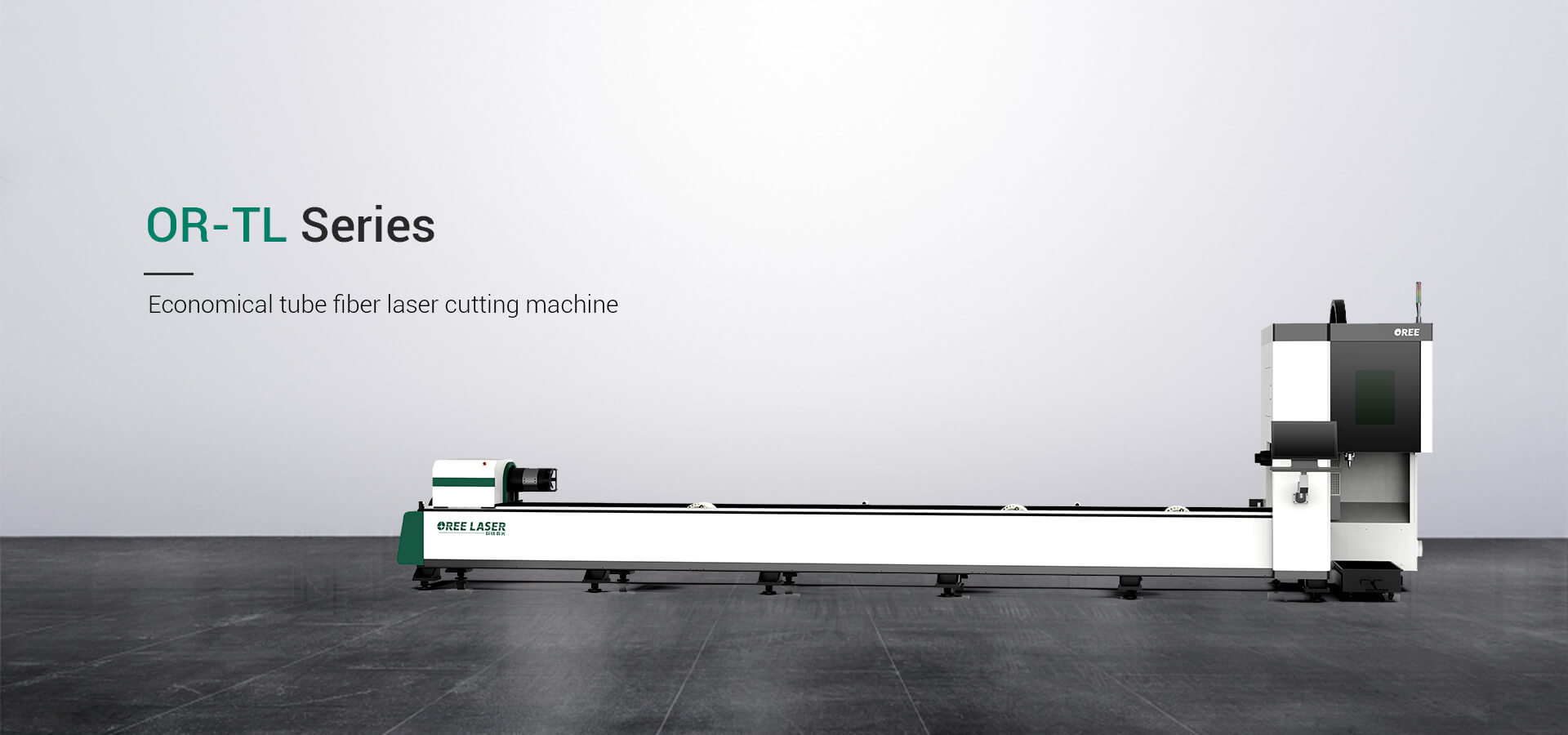

Mastering all Types of Pipes
Wide cutting application range, adaptable to various cutting conditions
Can be used for cutting or cutting complex shapes for various types of pipes
High-efficiency Chuck
The chuck adopts a pneumatic direct push structure
Automatic centering, stable clamping, high transmission efficiency
Easy to disassemble and maintain, greatly improving processing efficiency
Brand New Double-beam Bed Structure
Adopting a horizontal bed structure
Self-developed Stopper Plug-in Double-beam Design
Heavy load-bearing, high rigidity, and more stable high-speed cutting
Ultra-short Tailing
While improving cutting efficiency
Makes the most of the raw materials and reduces production costs
Product Video
Technical Parameter
mm
inch
Model
OR-TL 6016 OR-TL 6020
Laser Output Power
1000w~3000w 1000w~3000w
Effective Cutting Diameter Of Round Tube
φ10mm-φ160mm φ10mm-φ225mm
Effective Cutting Diameter Of Square Tube
□10-□160mm □10-□225mm
Positioning Accuracy
±0.1mm ±0.1mm
Repeat Positioning Accuracy
±0.1mm ±0.1mm
Maximum Simultaneous Positioning Speed
110m/min 110m/min
Maximum Acceleration
1.5G 1.5G
Model
OR-TL 6016 OR-TL 6020
Laser Output Power
1000w~3000w 1000w~3000w
Effective Cutting Diameter Of Round Tube
φ0.39inch-φ6.29inch φ0.39inch-φ8.85inch
Effective Cutting Diameter Of Square Tube
□0.39inch-□6.29inch □0.39inch-□8.85inch
Positioning Accuracy
±0.00039inch ±0.00039inch
Repeat Positioning Accuracy
±0.00039inch ±0.00039inch
Maximum Simultaneous Positioning Speed
110m/min 110m/min
Maximum Acceleration
1.5G 1.5G
Cutting Sample
