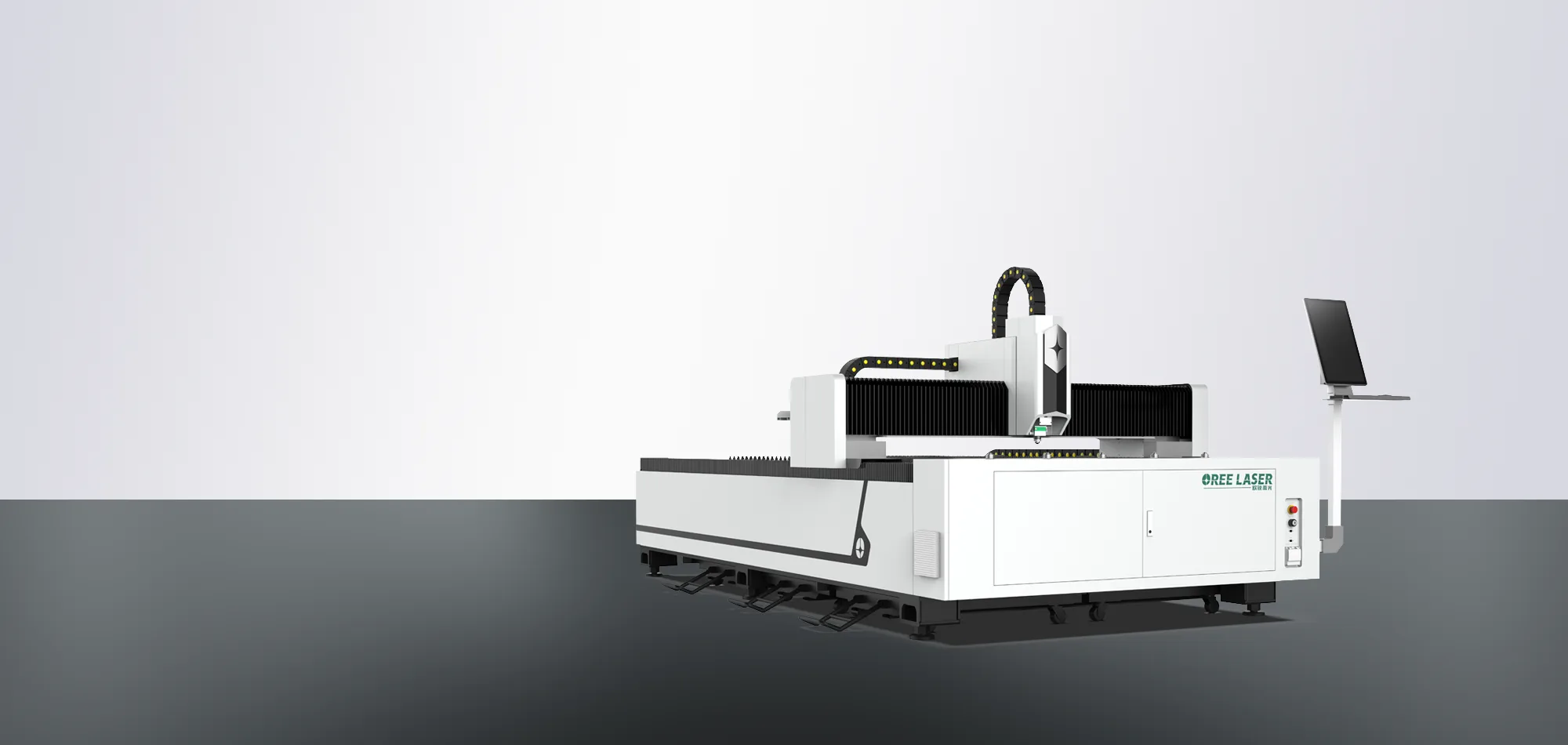

Super heavy Steel Welding Machine Bed

The bed adopts 12mm super-thick monolithic steel plate laser blanking.The groove welding method is used to make the plates reach equal strength butt Then it undergoes stress annealing and natural aging treatment to eliminate internal stress and maintain the extremely high stability and cutting accuracy of the bed.

The Fifth-generation Aviation Aluminum Alloy Beam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
Auto focusing laser head
The auto-focusing optical fiber cutting head has a built-in motor drive unit. The focus lens is driven by a linear mechanism to automatically change the position within the specified range. The continuous focus can be set by the program to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials.

Intelligent Control System

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

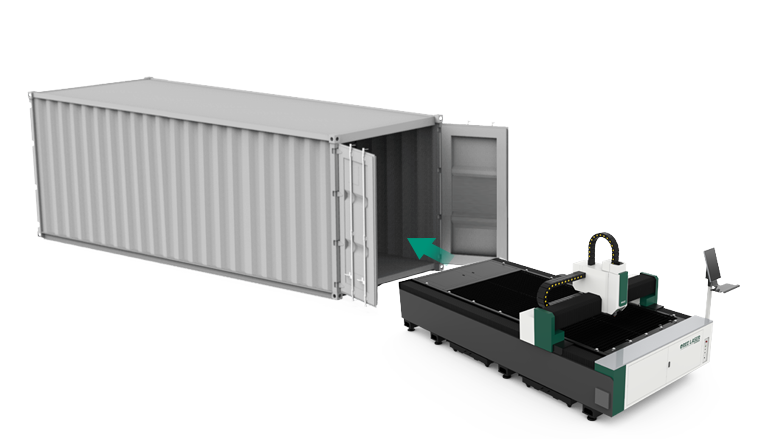

Packed in a 20GP container for easy transportation.

This small machine can be installed in a 20GP container to protect the fuselage from damage during transportation, reduce transportation costs, and facilitate loading and unloading. portation, reduce transportation costs, and facilitate loading and unloading.
Product Video
Technical Parameter
mm
inch
Model
 OR-FH 3015 OR-FH 4015 OR-FH 6015 OR-FH 4020 OR-FH 6020 OR-FH 6025 OR-FH 8025
Laser Power
1000w~12000w 1000w~12000w 1000w~12000w 1000w~12000w 1000w~12000w 1000w~12000w 1000w~12000w
Working Area
3050*1530mm 4050*1530mm 6050*1530mm 4050*2030mm 6050*2030mm 6050*2530mm 8050*2530mm
Accuracy Of Positioning
±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Repeat Repositioning Accuracy
±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max Movement Speed
100m/min 100m/min 100m/min 120m/min 120m/min 120m/min 120m/min
Maximum Acceleration
1.5G 1.5G 1.5G 1.5G 1.5G 1.5G 1.5G
Model
 OR-FH 3015 OR-FH 4015 OR-FH 6015 OR-FH 4020 OR-FH 6020 OR-FH 6025 OR-FH 8025
Laser Power
1000w~12000w 1000w~12000w 1000w~12000w 1000w~12000w 1000w~12000w 1000w~12000w 1000w~12000w
Working Area
120*60inch 159*60inch 238*60inch 159*79inch 238*79inch 238*99inch 316*99inch
Accuracy Of Positioning
±0.00118inch ±0.00118inch ±0.00118inch ±0.00118inch ±0.00118inch ±0.00118inch ±0.00118inch
Repeat Repositioning Accuracy
±0.00079nch ±0.00079nch ±0.00079nch ±0.00079nch ±0.00079nch ±0.00079nch ±0.00079nch
Max Movement Speed
100m/min 100m/min 100m/min 120m/min 120m/min 120m/min 120m/min
Maximum Acceleration
1.5G 1.5G 1.5G 1.5G 1.5G 1.5G 1.5G
Cutting Sample
