OR-LH

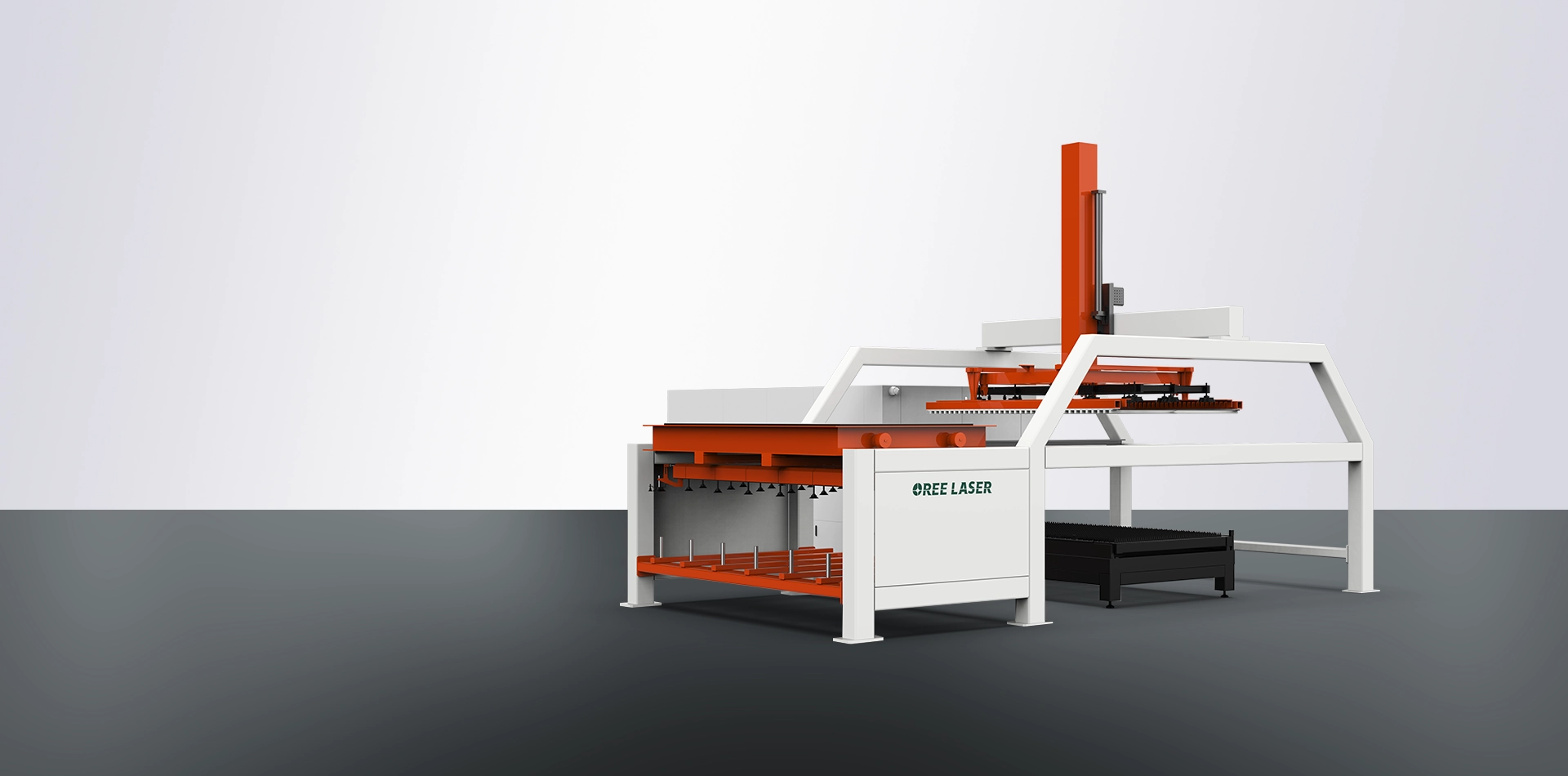

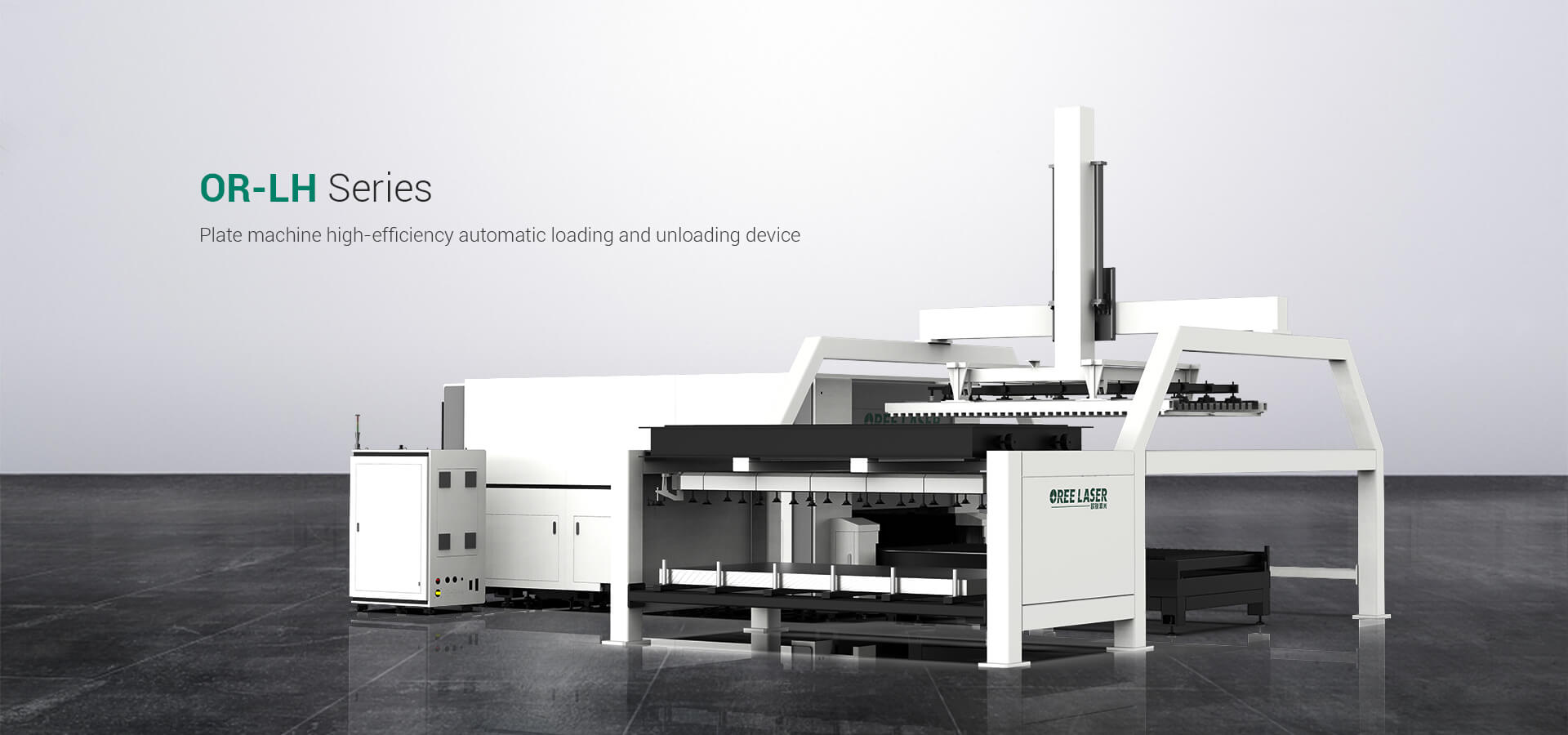

High Efficiency Automatic Loading and Unloading machine

Modular design, reasonable space layout

Separate modular design, easy to loading and unloading, low transportation cost. Reduce the footprint, optimize the spatial layout, so that the cycle feeding cycle is shorter, more efficiency.

Automatic loading and unloading, Intelligent, efficient and stable

Be able to realize automatic cycle cutting, loading and unloading without worker, simple operation, saves labor cost, time and effort.

Thickness measurement of sheet by layers, safe loading and unloading

Automatic thickness measurement of sheet, Plate separation function and double plate detection function, avoids loading multiple sheets.

Technical Parameter

inch

Model	OR-PH3015	OR-PH6015	OR-PH4020	OR-PH6020	OR-PH6025
Power	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w
Positioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Repeat Repositioning Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Cutting Speed	100m/min	120m/min	100m/min	120m/min	100m/min
Maximum Acceleration	1.5G	1.5G	1.5G	1.5G	1.5G
Equipment Size	3050mm*1530mm	6050mm*1530mm	4050mm*2030mm	6050mm*2030mm	6050mm*2530mm

Model	OR-PH3015	OR-PH6015	OR-PH4020	OR-PH6020	OR-PH6025
Power	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w
Positioning Accuracy	±0.0011811inch	±0.0011811inch	±0.0011811inch	±0.0011811inch	±0.0011811inch
Repeat Repositioning Accuracy	0.0007874 inch	0.0007874 inch	0.0007874 inch	0.0007874 inch	0.0007874 inch
Cutting Speed	100m/min	120m/min	100m/min	120m/min	100m/min
Maximum Acceleration	1.5G	1.5G	1.5G	1.5G	1.5G
Equipment Size	120inch*60inch	238inch*60inch	159inch*79inch	238inch*79inch	238inch*99inch

Cutting Sample

If you want a price, fully catalogue or other informations, pls contact us
