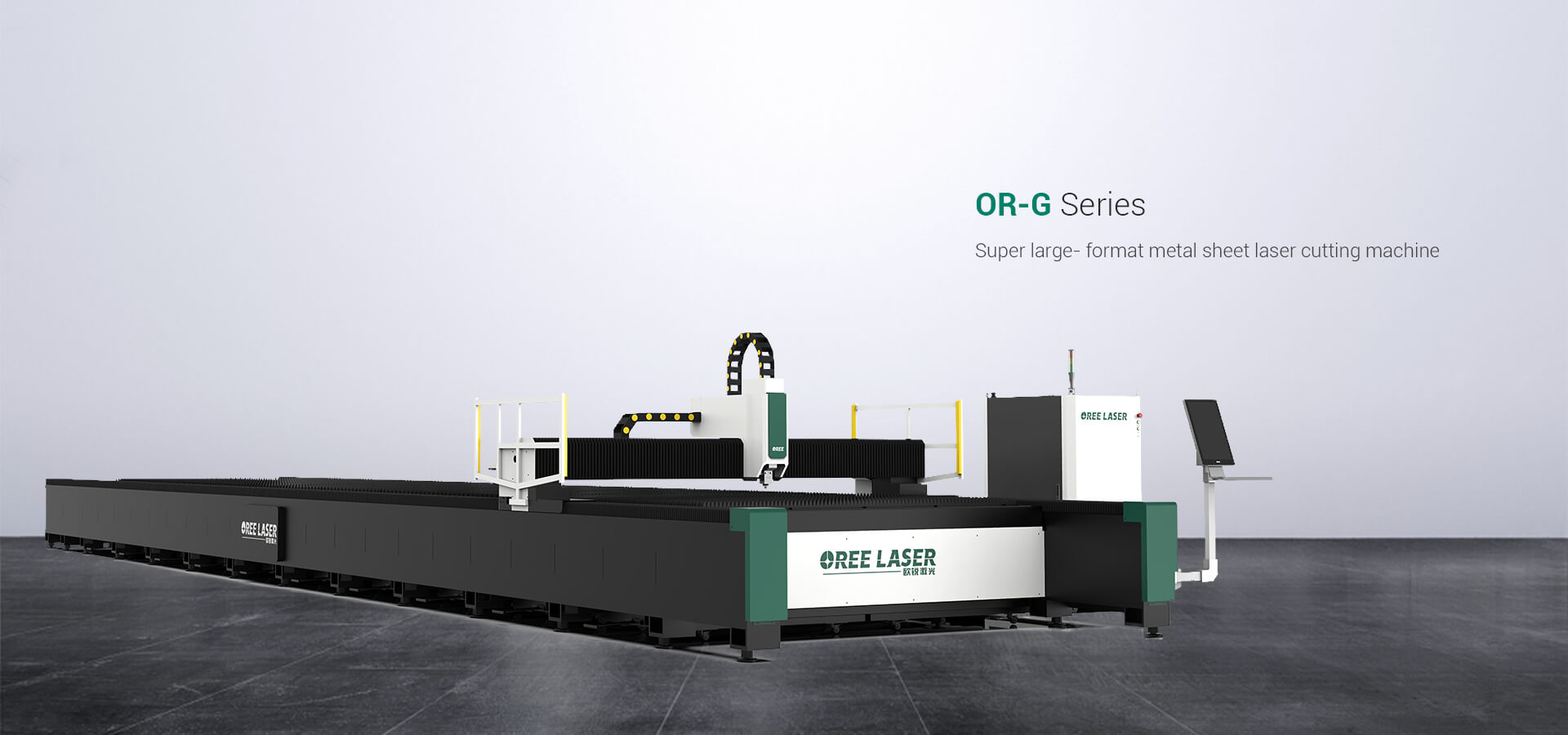

Maximum cutting area

The maximum cutting area can reach 13100*2550mm, which can realize the overall processing of super large workpieces, and the rapid and precise cutting of plates can meet more cutting needs.

Bevel cutting

Range of bevel angle 0-45°
Material thickness of bevel cutting 30mm
Different types of bevel cutting:V type,, X type, Y type, etc

Equal strength docking overweight plate welding bed

The high-strength steel plate welding machine body uses groove welding process to achieve equal-strength welding (butt joint) between steel plates. The mechanical properties of the welded joint (especially the tensile strength) are equivalent to the base material. The welded joint is annealed by internal stress after it does not tear. Craftsmanship to ensure that the bed is sturdy and durable with zero deformation.

Efficient intelligent bus system

Two-stage capacitive edge seeking; intelligent anti-pinch head; high-precision axis synchronization.

Beam safety light curtain

Light curtains are installed on the front and back sides of the beam to provide 360° full protection, waterproof, dustproof, anti-interference, high sensitivity, and strong reliability. The safety protection can be opened with one button to ensure the safety of workers when the machine is working normally.

Optimize the partition dust removal system

Optimize the partition dust removal function, set a smoke removal pipe on the outside of the bed; The irritating high-temperature smoke generated in the cutting area will be discharged after unified dust collection and dust removal treatment through the external flue of the bed.
Product Video
Technical Parameter
mm
inch
Model
 OR-G 13025 OR-G 14031
Laser Power
6000w~30000w 6000w~30000w
Working Area
13100*2550mm 14100*3100mm
Positioning Accuracy
±0.05mm ±0.05mm
Repeat Ositioning Accuracy
±0.03mm ±0.03mm
Max Speed
100m/min 100m/min
Maximum Acceleration
1.5G 1.5G
Model
 OR-G 13025 OR-G 14031
Laser Power
6000w~30000w 6000w~30000w
Working Area
515*100inch 555*122inch
Positioning Accuracy
±0.00197inch ±0.00197inch
Repeat Ositioning Accuracy
±0.00118inch ±0.00118inch
Max Speed
100m/min 100m/min
Maximum Acceleration
1.5G 1.5G
