Core Technology Autonomy

Small body, efficient cleaning

It has the advantages of easy control, easy automation integration, no chemical reagents, surface cleaning, high cleaning cleanliness, high precision, high efficiency and environmental protection, safety and reliability, almost no damage to the surface of the substrate, and can solve many problems that cannot be solved by traditional cleaning.

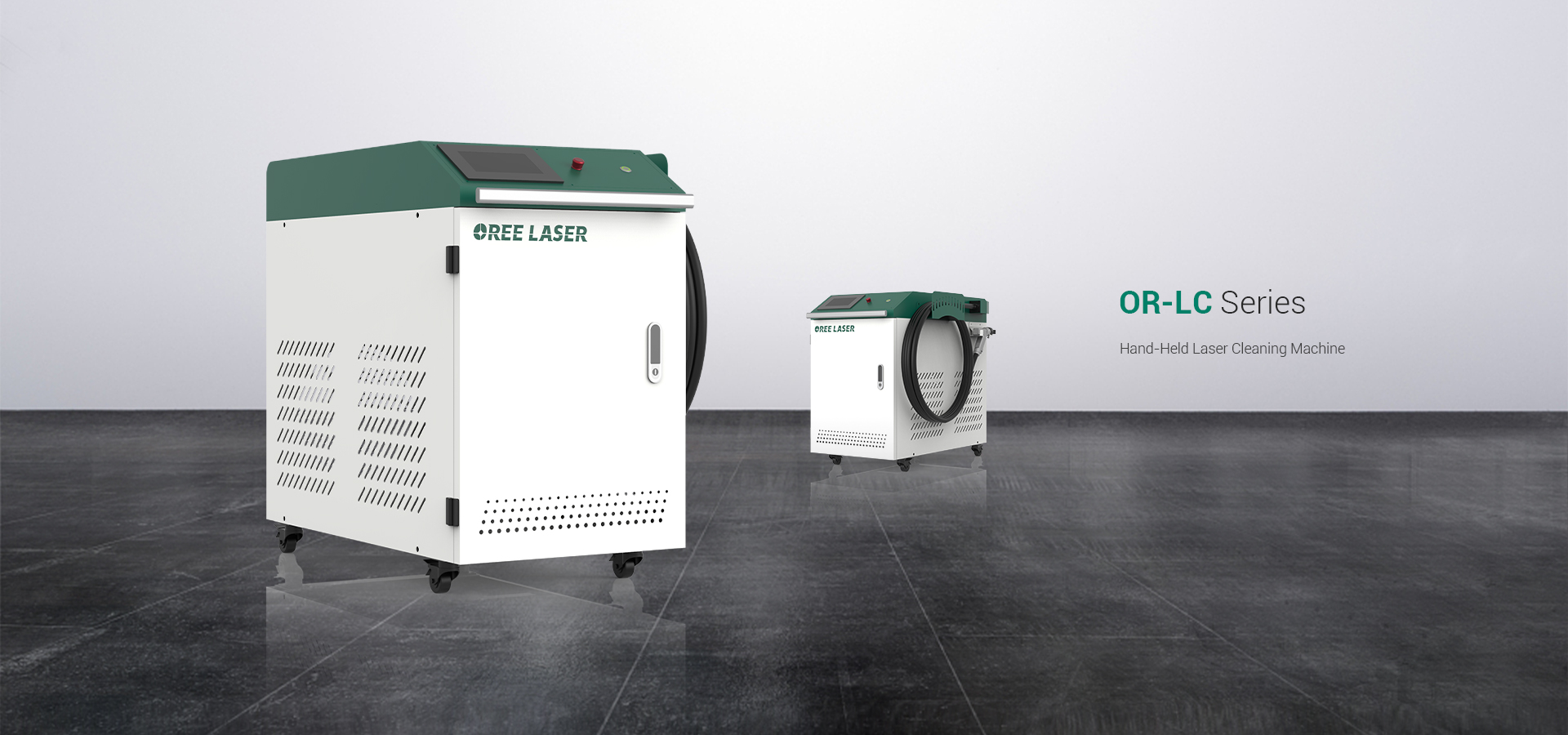

Handheld cleaning head
The internal design is smart, and the internal structure is completely sealed, which can prevent the optical part from being polluted by dust. The shape is light, the body engineering design method is adopted, and the grip is comfortable; it is easy to grasp with one hand, and the operation is simple and easy to use. The protective lens adopts a drawer structure, which is easy to replace. Using laser rust removal, high production efficiency.

Product Advantages

Scope of application

Application industry

Products are widely used in iron and steel metallurgy, non-ferrous metals, automobiles and parts, aerospace, military electronics, precision instruments, machinery manufacturing, molds, hardware tools, integrated circuits, sheet metal, advertising, craft gifts and other industries.
Product Video
Technical Parameter
mm
inch
Model
OR-LC-C1000W OR-LC-C1500W OR-LC-C2000W OR-LC-C3000W
Laser Power
1000W 1500W 2000W 3000W
Laser Wavelength Range
1064±10nm 1064±10nm 1064±10nm 1064±10nm
Collimated Focal Length
D20*3.5 F60MM D20*3.5 F60MM D20*3.5 F60MM D20*3.5 F60MM
Focus Focal Length
D20 F400m/D20 F800mm D20 F400m/D20 F800mm D20 F400m/D20 F800mm D20 F400m/D20 F800mm
Machine Power
≤5.5KW ≤7.5KW ≤9.5KW ≤13.5KW
Cleaning Speed
5-20m²/h 8-40m²/h 10-60m²/h 20-80m²/h
Model
OR-LC-C1000W OR-LC-C1500W OR-LC-C2000W OR-LC-C3000W
Laser Power
1000W 1500W 2000W 3000W
Laser Wavelength Range
1064±10nm 1064±10nm 1064±10nm 1064±10nm
Collimated Focal Length
D20*3.5 F60MM D20*3.5 F60MM D20*3.5 F60MM D20*3.5 F60MM
Focus Focal Length
D20 F400m/D20 F800mm D20 F400m/D20 F800mm D20 F400m/D20 F800mm D20 F400m/D20 F800mm
Machine Power
≤5.5KW ≤7.5KW ≤9.5KW ≤13.5KW
Cleaning Speed
5-20m²/h 8-40m²/h 10-60m²/h 20-80m²/h
Cutting Sample
