 Superheavy Steel Welding Machine Bed

The bed adopts 12mm super-thick monolithic steel plate laser blanking.The groove welding method is used to make the plates reach equal strength butt Then it undergoes stress annealing and natural aging treatment to eliminate internal stress and maintain the extremely high stability and cutting accuracy of the bed.

The Fifth-generation Aviation Aluminum Alloy Beam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
Auto Focus Laser Head
Suitable for a variety of focal lengths, the focus position can be adjusted according to different thicknesses. Flexible and fast, no collision, automatic edge finding, reducing sheet waste.

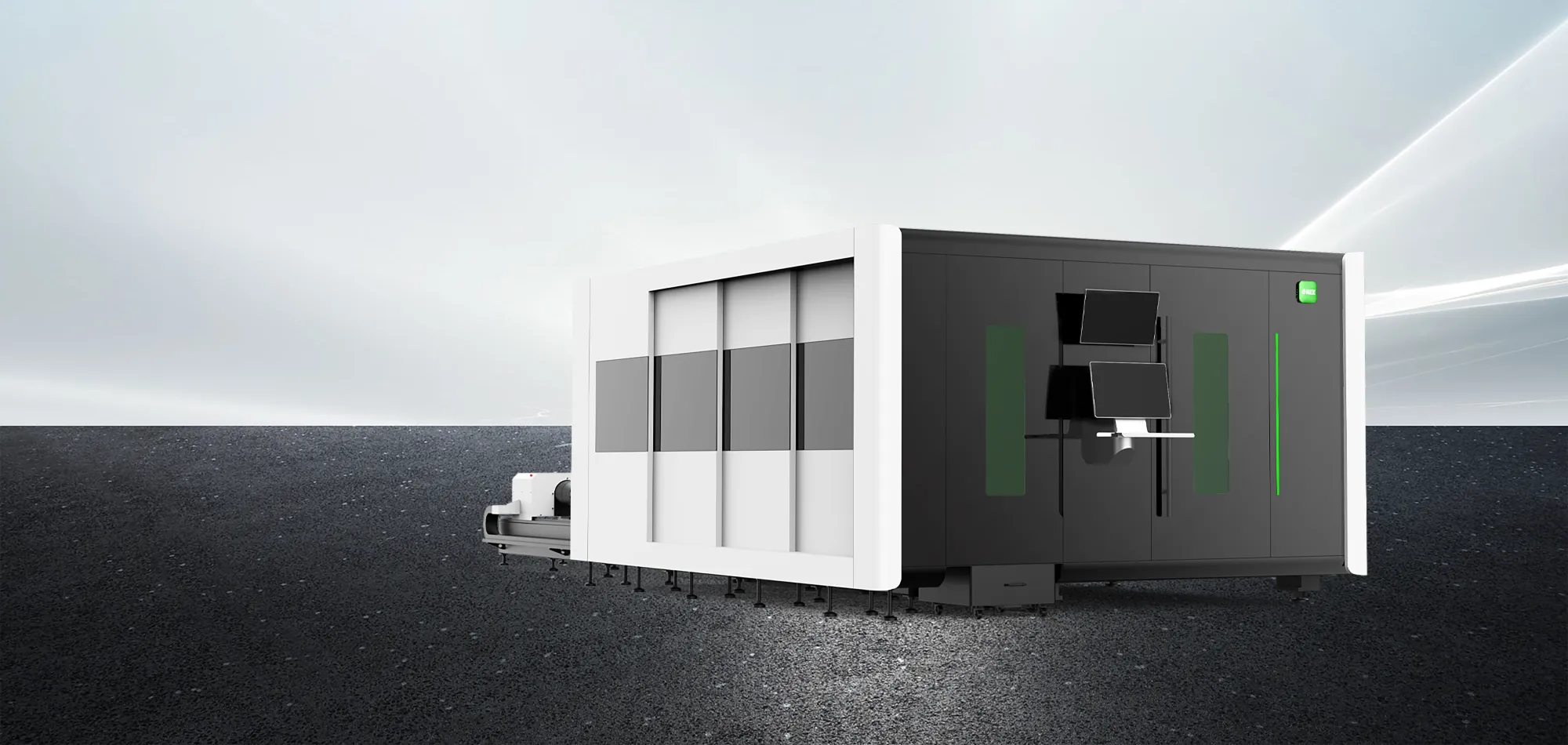

Full Protection Cover

The front and back of the protective cover are equipped with built-in cameras and use the intelligent central control system to monitor the operation. The European CE standard OD4+ level protective glass observation window, thickened sheet metal protective cover, safe production.

Double Pneumatic Chucks

The two-way pneumatic chuck tube automatically locates the center, extends the transmission structure to improve stable operation, and increases the jaws to save materials.

Faster Exchange Speed

Equipped with a six-sided steel track, the pulley and the track are inlaid closely, and the built-in pulley runs smoothly. The fastest can achieve a complete exchange of 10S.
Product Video
Technical Parameter
mm
inch
Model
 OR-PH 3015T OR-PH 6015T OR-PH 4020T OR-PH 6020T OR-PH 6025T
Laser Power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Accuracy Of Positioning
±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Repeat Positioning Accuracy
±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max Movement Speed
100m/min 100m/min 120m/min 120m/min 120m/min
Tube Size Range
φ10-φ225mm,□10- □225mm φ10-φ225mm,□10- □225mm φ10-φ225mm,□10- □225mm φ10-φ225mm,□10- □225mm φ10-φ225mm,□10- □225mm
Model
 OR-PH 3015T OR-PH 6015T OR-PH 4020T OR-PH 6020T OR-PH 6025T
Laser Power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Accuracy Of Positioning
±0.0011811inch ±0.0011811inch ±0.0011811inch ±0.0011811inch ±0.0011811inch
Repeat Positioning Accuracy
±0.0007874inch ±0.0007874inch ±0.0007874inch ±0.0007874inch ±0.0007874inch
Max Movement Speed
100m/min 100m/min 120m/min 120m/min 120m/min
Tube Size Range
φ10-φ225mm,□10- □225mm φ10-φ225mm,□10- □225mm φ10-φ225mm,□10- □225mm φ10-φ225mm,□10- □225mm φ10-φ225mm,□10- □225mm
Cutting Sample
