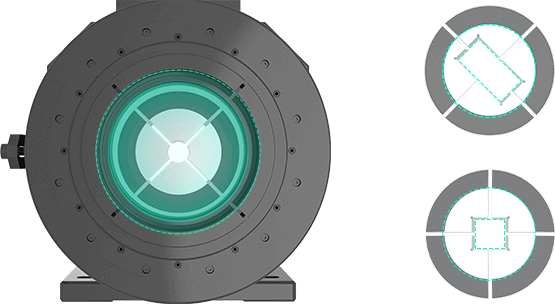

Exclusive chuck, efficient and flexible
Standard pneumatic chuck for tube, strong clamping force, high speed, speedy response, and precise cutting.

Seamless cutting, easy to replace.

Adopt the same diameter chuck, no damage to the surface of the pipe, chuck replacement is simple and fast, high quality of cutting.
Flexible and effortless processing
Equipment cutting, punching, slotting efficiency is fast, meet the requirements of round pipe, square pipe, rectangular pipe, oval pipe, multi-pipe pipe processing, support 12m ultra-long workpiece processing.
Continuous feeding, rapid cutting
The feeding roller clamps the pipe and circulates feeding without resetting, reducing the waiting time and realizing the maximum feeding speed, improve cutting efficiency.

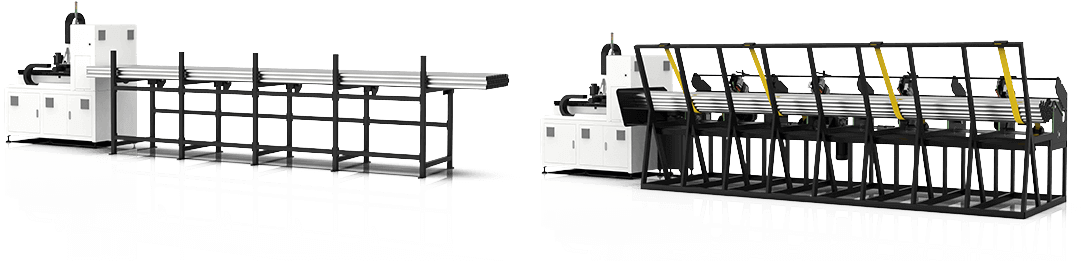

Intelligent feeding and convenient
Full/semi-automatic feeding mode is selected to support batch cutting of small pipes, reduce manpower and achieve a higher processing efficiency.
Ultra-short tail material, save cost and materials.
The cutting tail material can be within at least 50mm, which maximize the utilization rate of materials and reduce the cost of waste materials.

Intelligent central control system, efficient response

Intelligent central control system, with high performance automatic focusing cutting head, variety of equipment functions, and strong performance.
Product Video
Technical Parameter
mm
inch
Model
 OR-TM90 OR-TM120
Power
1000-3000W 1000-3000W
Processing range
φ15-φ80mm,□10-60mm φ30-φ100mm,□20-80mm
Processing accuracy
±0.03mm ±0.03mm
Accelerated speed
1.5G 1.5G
Max processing tube length
6/9/12m 6/9/12m
Max running speed
110m/min 110m/min
Model
 OR-TM90 OR-TM120
Power
1000-3000W 1000-3000W
Processing range
φ0.59055-φ3.14961mm,□0.3937-2.36221mm φ0.59055-φ3.14961mm,□0.3937-2.36221mm
Processing accuracy
±0.00118 inch ±0.00118 inch
Accelerated speed
1.5G 1.5G
Max processing tube length
6/9/12m 6/9/12m
Max running speed
110m/min 110m/min
Cutting Sample
